GKE - Google Kubernetes Engine onboarding

Step-1: Login to Google Cloud Console

• Login to in google cloud console

• Go to required project

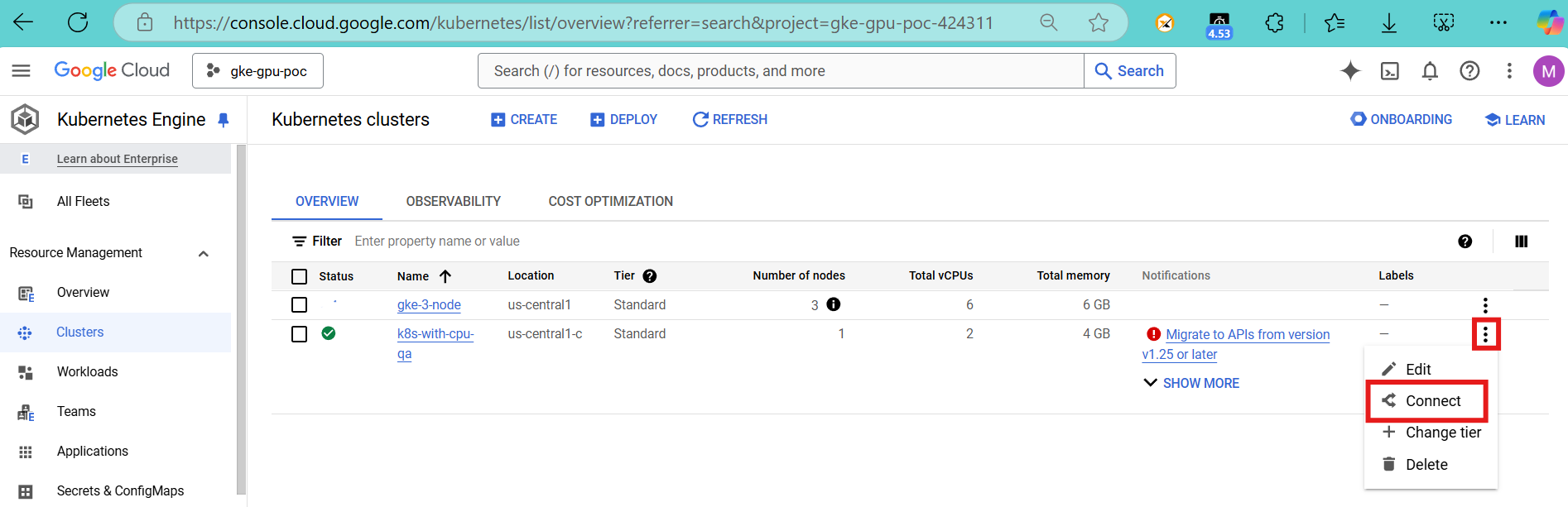

• Navigate to Clusters

• Click on Actions

• Click on Connect

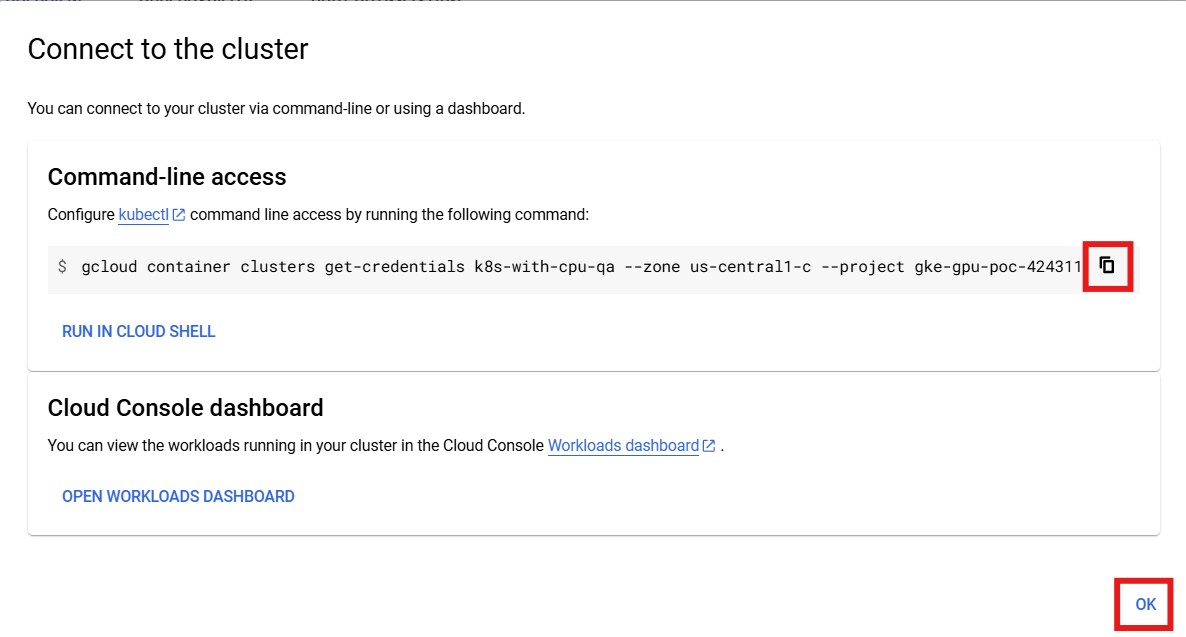

• Copy command line access

• Click on OK

• Activate Cloud Shell

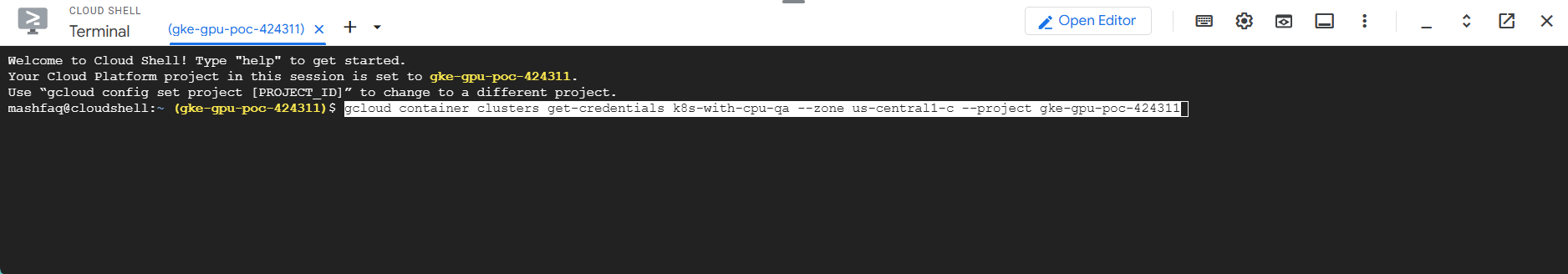

• Paste the copied command line access in terminal

• Press Enter

Step-2: Enter the Prometheus URL in DigitalEx

• Login to DigitalEx Portal

• Click on Menu

• In Admin section, Click on Accounts

• Click on Kubernetes

• Tap on GKE

• Click on GKE Cluster connect button

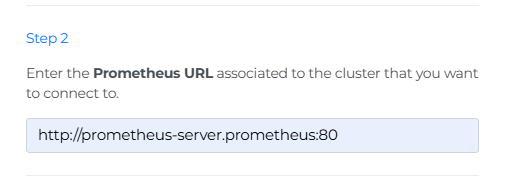

• Enter your Prometheus URL . Following screenshot shows the example of URL

Step 3: Execute the script from the Kubernetes Shell

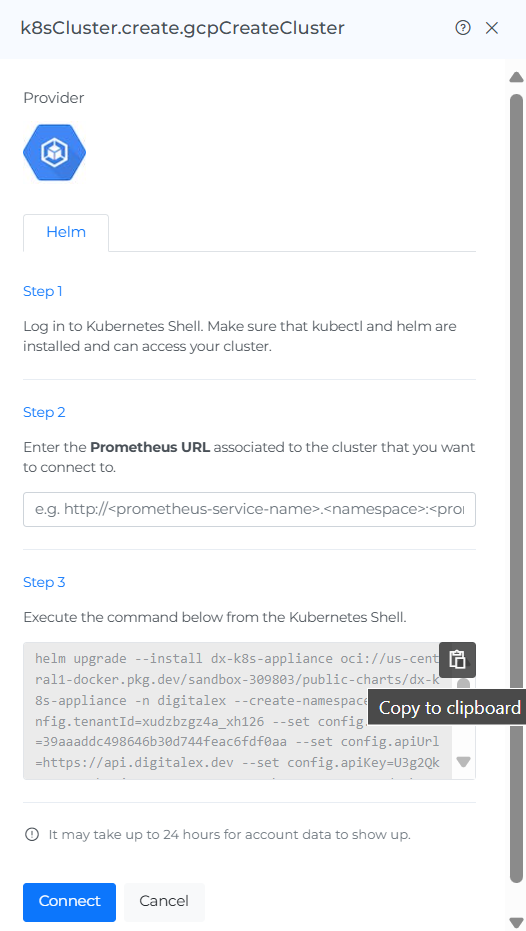

1. In DigitalEx Portal Copy the script and execute the command below provided by Digital UI within the Kubernetes Shell terminal window.

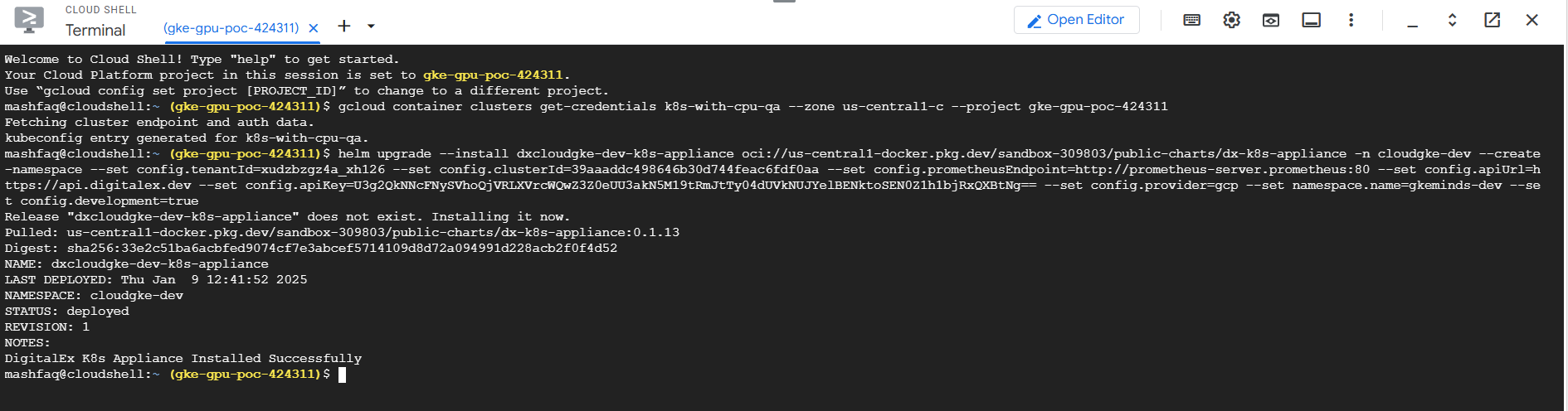

• Paste the copied script in cloud shell and enter

• Click on the Connect button in DigitalEx, after the running script is successfully completed.

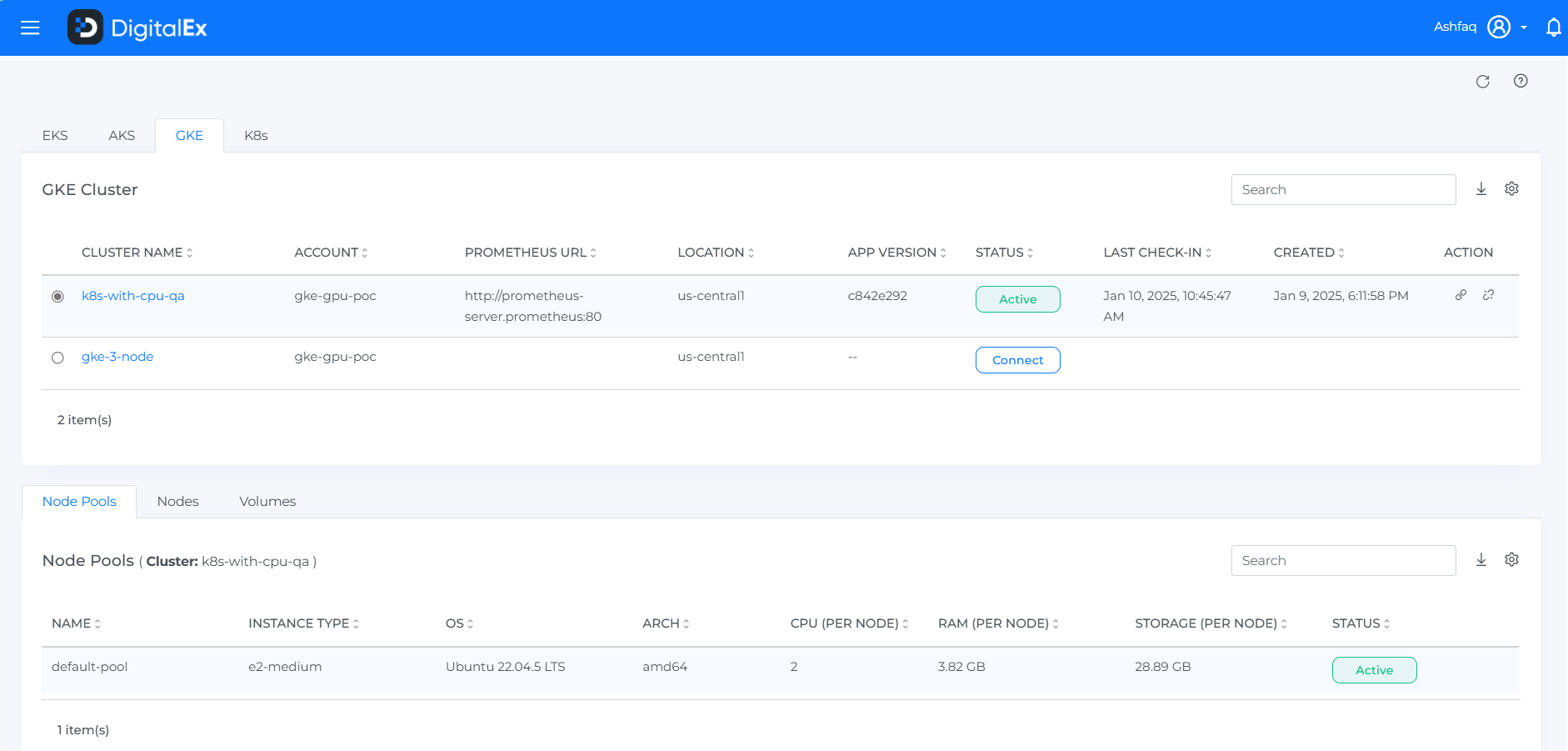

• The onboarded GKE Cluster will be displayed, and status will be ACTIVE.

Direct Cluster Navigation

There is a clickable link on the cluster names. This allows to seamlessly navigate to detailed cost insights for each cluster directly from the Kubernetes Admin page.
